  3. Pulsar Max charger
By Wallbox

Pulsar Max charger

€910,16 - €1.034,16
Tax included. Shipping calculated at checkout.

In stock – shipping in 1–3 working days

GRANT UP TO 700€

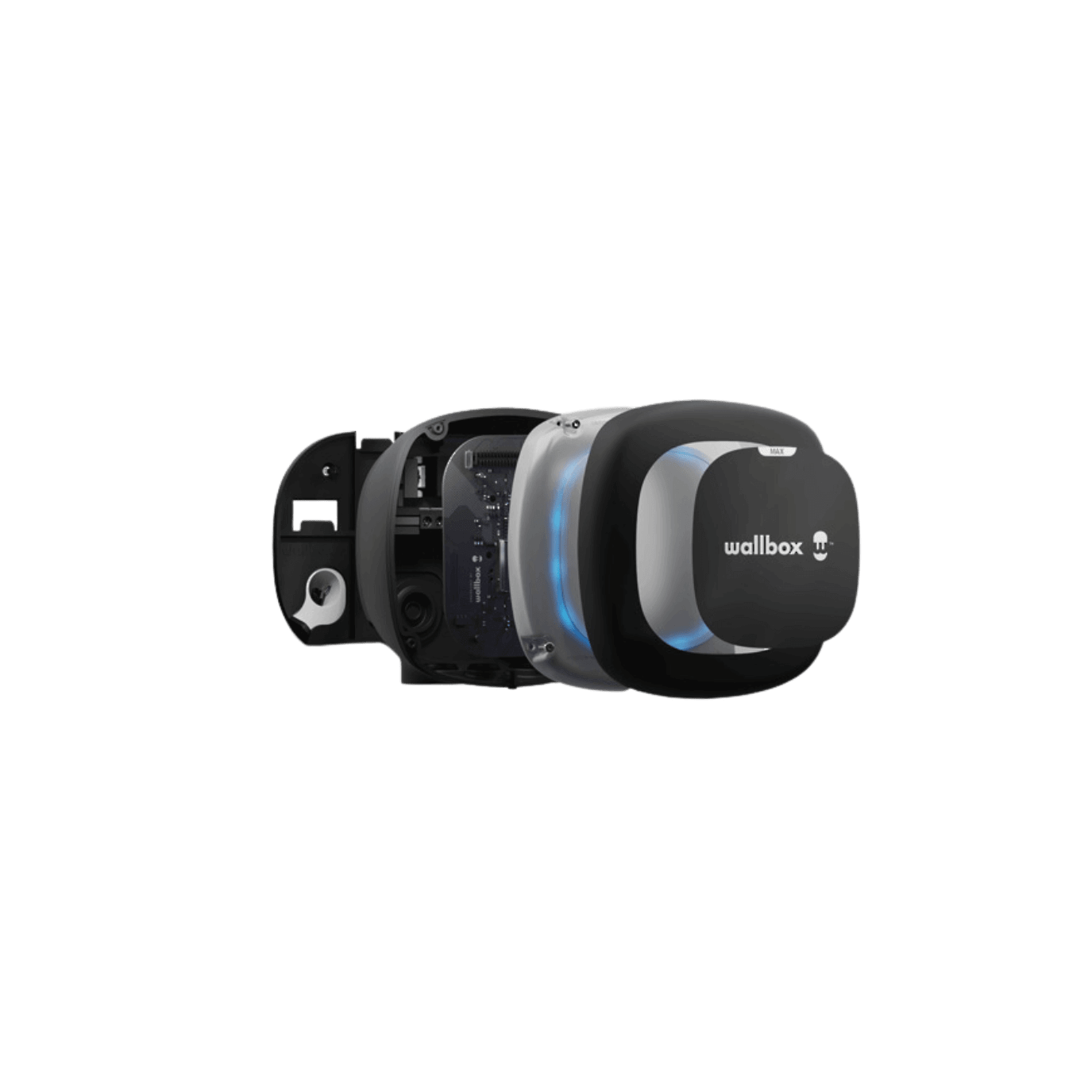

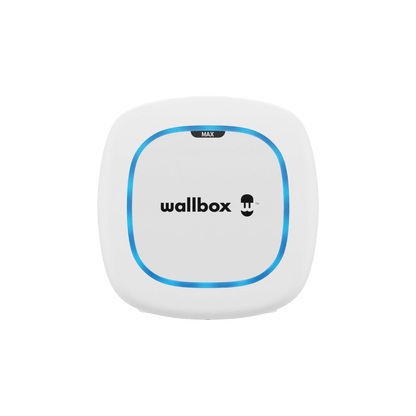

The Pulsar Max with power up to 22kW is a powerful, reliable smart charging solution for electric and plug-in vehicles, optimized for home use. It has an upgraded robust design, IK10 protection level and even easier installation. Contains Type 2 cable for charging any electric vehicle. Συνοδέυεται από 3 year warranty.

Output power: 7.4kW
Color: White
Cable length: 7m
€979,60
€979,60
Product code: PLP2-M-2-2-9-001
Φορτιστής Pulsar Max με ενσωματωμένο καλώδιο Τ2 - EV House
€979,60
€979,60
Power Meter - EV House
Φορτιστής Pulsar Max με ενσωματωμένο καλώδιο Τ2 - EV House

Improve your charging experience

The Power Boost intelligently monitors the use of electrical energy and transfers excess energy to your car. Whether you turn off the lights in a room or make other settings, Power Boost optimizes charging for your car, ensuring the most efficient charging experience.

See it!

Maximize your experience with the Wallbox App.

Management of chargers and users

  • Basic management of chargers, including addition, configuration, status and removal only through the application
  • Basic user management, including invitation, rights and removal
  • Advanced management of chargers with configuration of locations and detailed monitoring Advanced management of users with configuration of sub-groups and detailed rights
  • Administrative management of chargers with mass remote updating and restarting
  • User management with mass invitation, rights and removal
  • Management of the fleet with management of the users of the fleet based on RFID

Energy management

  • Management of Power Boost and adjustment of the charging power depending on the consumption of the household and the remaining available power.
  • Management of Power Sharing and distribution of the available power uniformly to all chargers.
  • Management Dynamic Power Sharing (up to 100Α) measures the available power for the charging network at any time and distributes the power to all chargers.

Statistics

  • Basic statistics for energy consumption, charging sessions and costs only through the application
  • Advanced statistics on energy consumption, cost, active sessions, real-time historical data and generated CSV reports with filters
  • Automatic submission of reports with a monthly e-mail message that includes the main information and the generated report in CSV.

Payments

Fully automated payment system with micropayments based on QR

General characteristics

Brand

Wallbox

Type

AC

Color

Black

Charging function

Fashion 3

Dimensions

198x201x99mm

Technical features

Temperature of operation

-25ºC to 50ºC

Storage temperature

-40ºC to 70ºC

Charging power

7.4kW-22kW

Link type

Type 2

Nominal current

16A-32A

Protection level

IP55/IK10

Voltage

220V-400V

Communication & communication

Connectivity

Wifi, Bluetooth

User identification

myWallbox APP & Portal

Charging status

Halo RGB LED, myWallbox App & Portal

User interface

myWallbox App & Portal / OCPP

Data sheet
